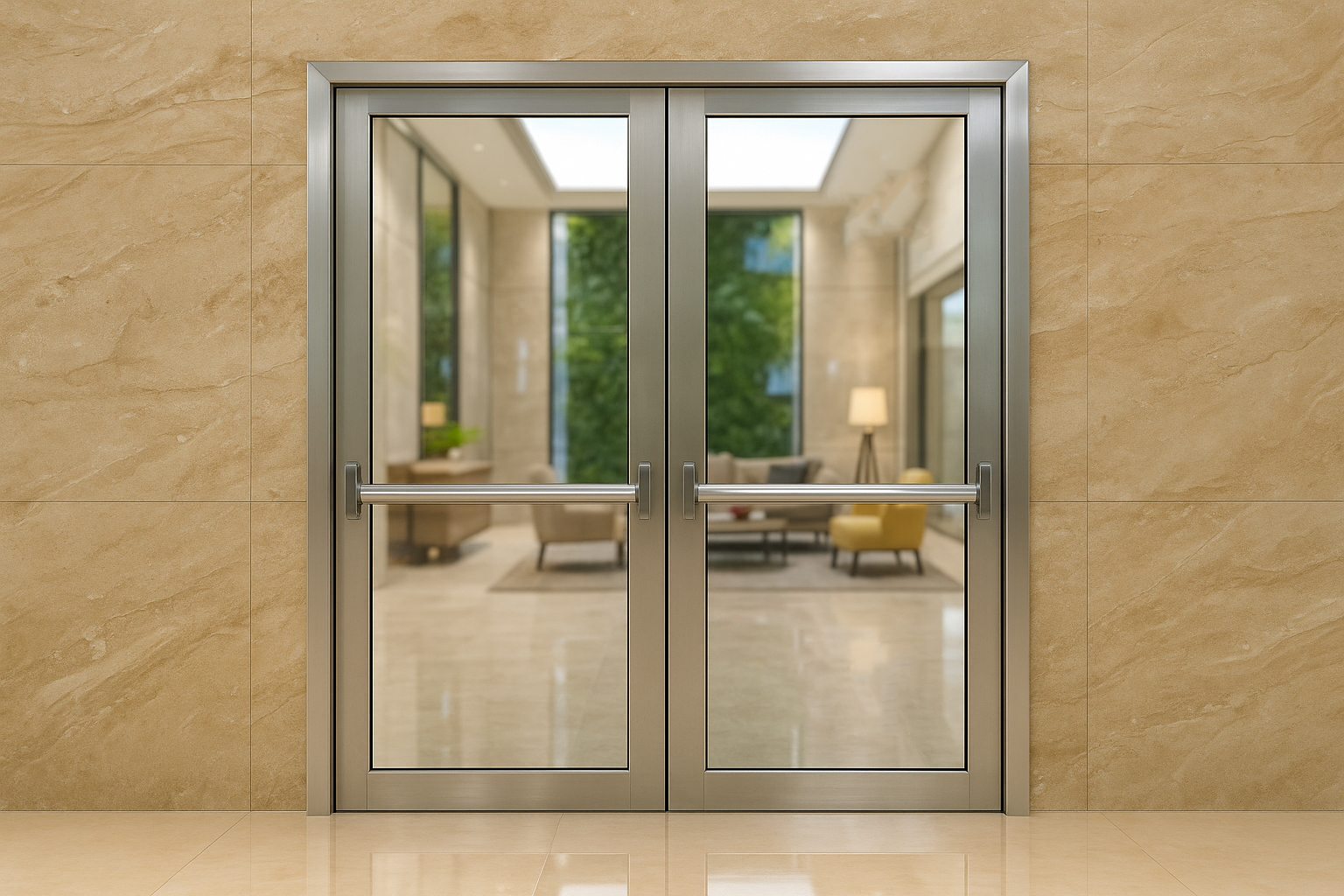

CE Marked Glazed Fire Door

Overview

Openable glazed door EI 60 provided of an aluminium sector compliant with UNI EN 1634-1 regulation

Comprised of

• Frame: Frame, leaves, glazing beads and finishing profiles, are fully made of aluminium sector.
• Assembly: Sectors assembly mechanical fixing with aluminium clamps.
• Seal: EPDM rabbet double seal for cold smokes.
• Lock: Fire proof lock compliant with CE EN 12209:2003/AC:2005 regulation, with Yale cylinder.
• Handle: Fire proof handle compliant with DIN EN 1906:2002-05 safety regulation, curved handle against accidental garment hooking.
• Flush-bolt On the second leaf. Fixed closing shaft and self-lock.
• Door Selector: compliant with CE EN 1158:2003 regulation, for leaf proper closing.
• Overhead Door Selector: to ensure the leaf closing (mandatory).
• Hinge: Three flanges adjustable hinge, provided of RAL 9005 matt black powder-coated.
• Glass: Clear glass for external use EI 60 class.
• Fastening: On metal subframe.
• Painting: RAL 7035 epoxy powder
• Subframe: (to be ordered separately) made of tubular galvanized steel (60x20x2) to be installed on the masonry with anchors or expandable dowels.
