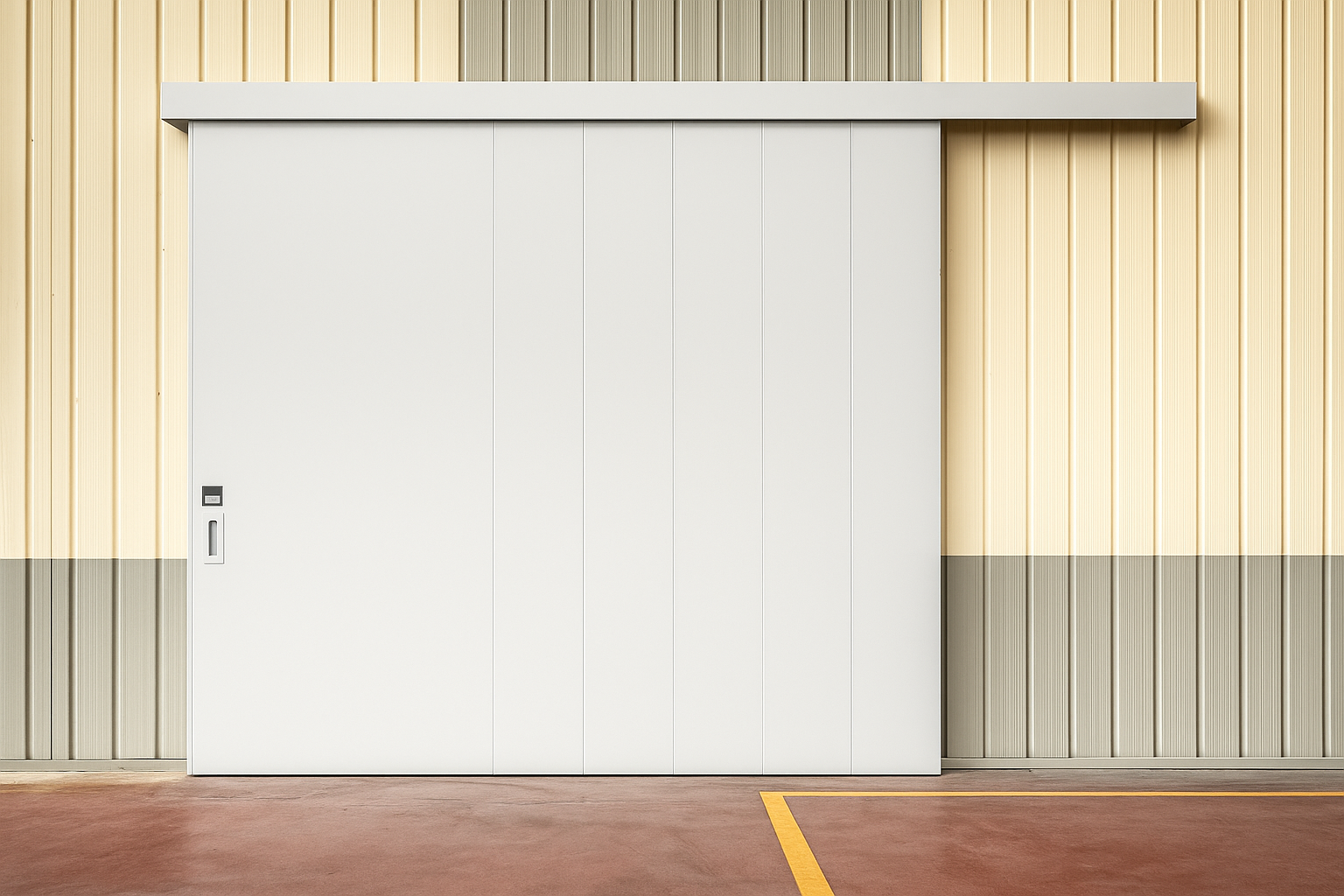

CE Marked Sliding Fire Door

Overview

Compliant with EN 16034:2014 e 13241:2016 and EN 1634-1 regulations

According to the norms UNI EN 16034:2014 & 13241:2016
CE Marking – Declaration of Performance (Dop)
Fire Resistance EN 1634-1EI2 120
Wind Resistance EN 12444-132414
Heat Transmission Value EN 12428-EN131411,21W/m² K
Mechanical Aspects EN 13241PASSA
Smoke Seal “Sa” EN 1634-1Sa
Durability EN 12604-12605C3

Comprised of

• Sheets: Sheets to be assembled, 80 mm total thickness. Separate sheets to be assembled.
• Insulation: Internal insulation made of high-density hard sheets to shape a monolithic structure.

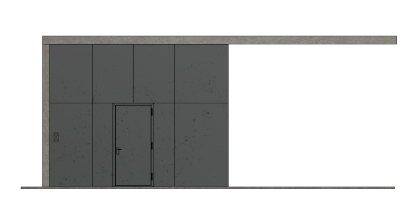

• Pedestrian Door: Leaf Embedded
• Labyrinth: Profiled steel section edge seals with self-expanding seals, pre-drilled holes to be installed on the wall by expandable dowels (not included).
• Upper Monorail: Horizontal sliding monorail made of press bent steel, 40/10 thickness and pre-drilled holes to be installed on the masonry by expandable dowels (not included).
• Hangars: Sliding on double ball bearing.
• Guide Track: Lower track shaped within the sheet where the floor anchored guide roller slides.
• Carter: Guide track cover made of press bent steel sheet (for upper monorail).
• Counterweight: For closure, protected by press bent steel sheet carter and pre-drilled holes to be installed on the wall by dowels (not included).
• Handle: Recessed handle on both sides of the leaves.
• Seal: Seal placed on the labyrinth, the guide track, the hangers and the counterweight.
• Operation: Standard with electromagnet.
• Painting: RAL 7035 embossed epoxy powder (light grey).
