Overview

ATEX (ATmosphères EXplosibles) zones are high-risk environments commonly found in the oil & gas, mining, and chemical industries. These areas require specialized safety solutions where every component must be explosion-resistant.

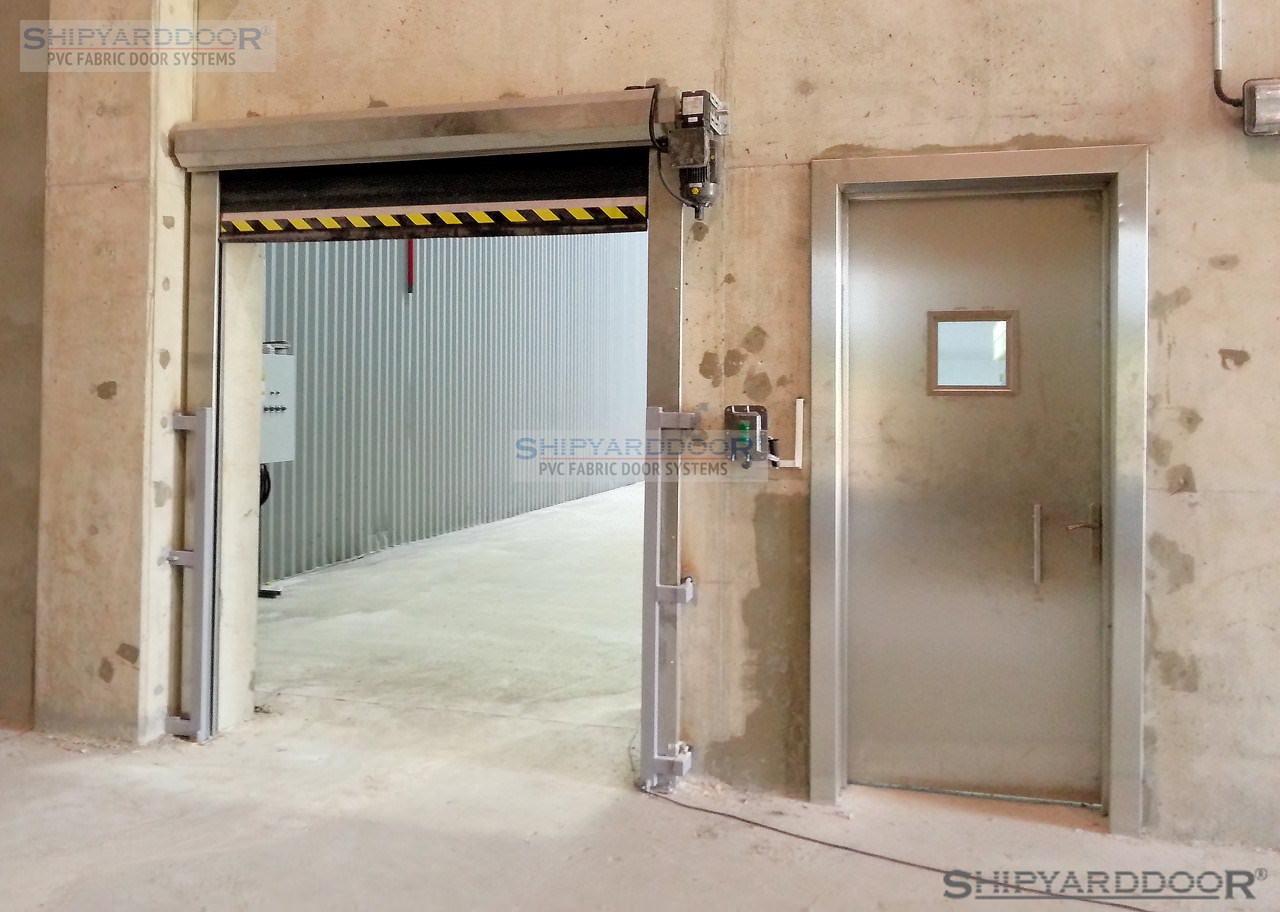

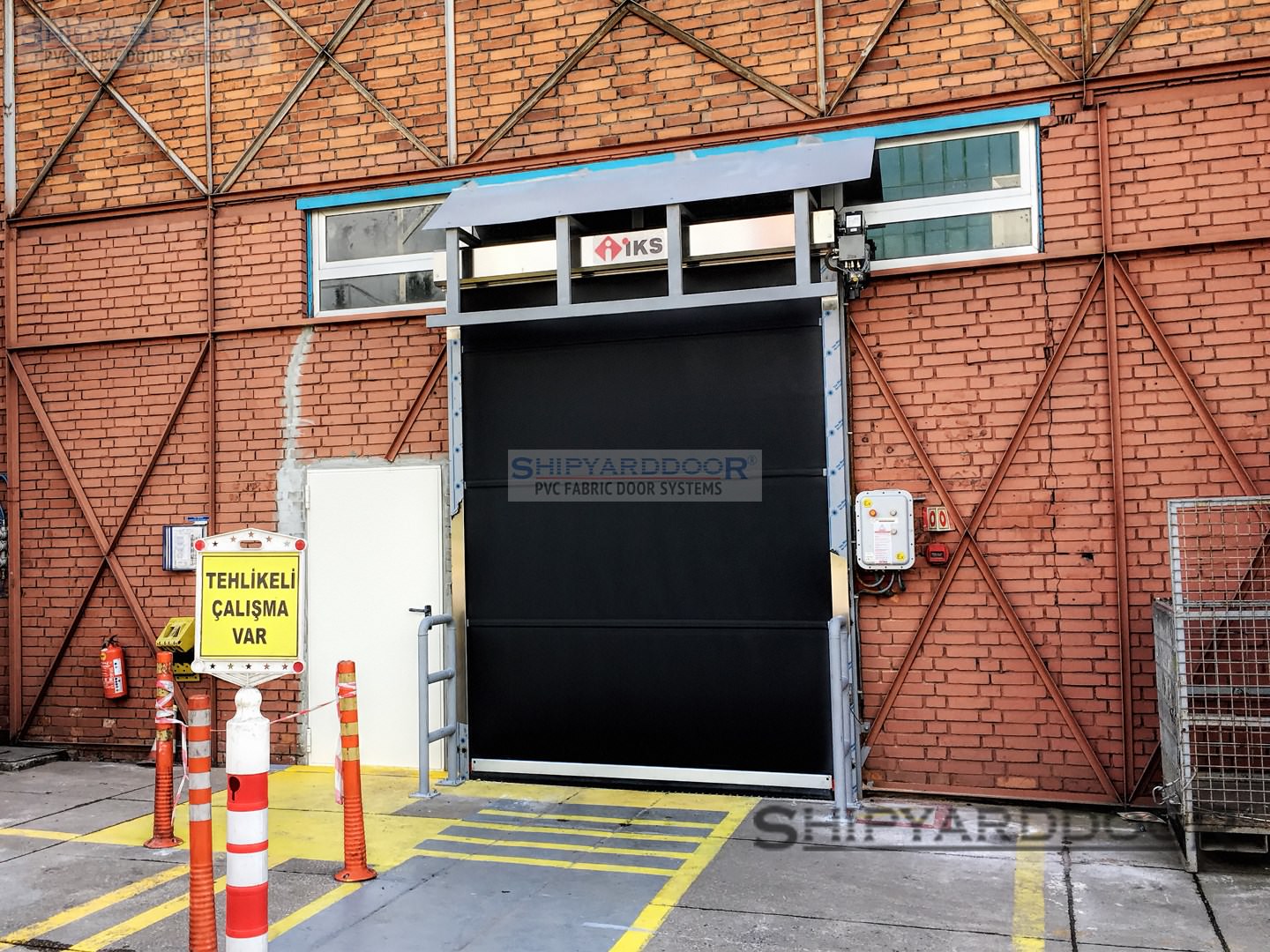

Shipyarddoor® ATEX high-speed doors are engineered specifically for use in explosive atmospheres, with all mechanical and electrical components carefully selected and designed to minimize ignition risk.Our doors comply with EN 60079-10 and NPR 7910 standards for ATEX zones.

With decades of experience, Shipyarddoor® is committed to delivering reliable, high-quality solutions where safety is critical—because when it comes to explosion protection, safety isn’t optional—it’s essential.

Comprised of

• 24/7 Operations:
  ATEX high speed roll up door system manages personnel and machinery access in high-risk explosive environments
• ATex door is equipped with special sealing equipment. Compact design, excellent sealing to reduce leakage of gas or explosive materials. All insulation rubber and sealing material is specially chosen from anti-static material.
• Fabric:
  We have been using special choose fabric is suitable for long life and atex properties.. İt have very high resistance against to UV damage, Trade name POLYMAR  A- LUTTE®  manufactured by Mehler Textile GMBH .industrial  Fire resist 680 gr/m² 1-2 mm 1100 Dtx  and Anti-static properties is <1x10*8 Ohm
• Fire Resistance:
  Fire resistance of the fabric is suitable for any fire safety regulations. Relative Standard is NFP 92507: M2.These materials are difficult to ignite. They include materials such as wood treated with a fire retardant and rigid foam plastics. A fire must extinguish itself when the source of the fire is removed.
• Wind resistance:
  ATEX Roll up Doors is designed internal applications standard wind resistance 40 km/h and Class 2 Annex ZA- (EN 13241:2011).
• Maximum Dimensions:
  ATEX high speed roll up  door can be manufactured up to 4500X4500 mm. big door requirements Shipyarddoor® has special applications
• Applications:
  ATEX Door can be used all industrial building has an explosive atmosphere that  is defined as a mixture of dangerous substances with air, under atmospheric conditions, in the form of gases, vapours, mist or dust in which, after ignition has occurred, combustion spreads to the entire unburned mixture..
• Safety Components:
  ATEX door has extreme safety equipment cause of sensitivity. Safety is most important things at our system, ATEX Door is manufactured at ATEX directive of EN Standard Applicable Directive 99/92/EC (also known as 'ATEX 137' or the 'ATEX Workplace Directive')
• Gearbox system:
  Motor gearbox and break one of most important part ATEX high speed door we specially choose all system low maintenance high durability and low spare parts cost, with all properties Motor Power from 1 Hp up to 3 Hp operations voltage 380-440 V 3 phase depends to dimensions of the doors. We prefer to use 3 Phase operation voltage for 7/24 industrial operations, as an options we have 220 V 1 phase motor operator for special applications. Gearbox high torque worm-hole design gear-box. All materials is manufactured according to II 2G EEx d k/c e IIcT4 / II 2D T125°CDie ATEX standard
• Speed:
  ATEX high speed roll up door can be operated as a standard 40 cm /sec also can be increased 150 cm/sec with frequency converter (optional).
• Operations:
  ATEX Rollup fabric door is guide up and down in the weather sealing vertical guides attached to the structure. Door is controlled by three buttons marked “Open,”“Closed,” and “Stop.” It is controlled by momentary pressure to open and constant pressure to close. (Reverse is available). System has touchless control board for clean room sections and it can be operated with Radar,(Optional) Remote controller, Metallic Loop Detectors, Pull rope switch as an options.

  Loop Detectors:
  Together with the inductive loops laid beneath the surface, the LC series loop detectors form a universal sensor system for detecting vehicles and forklift. People are not detected.

  Infrared Radar:
  Opening impulse sensor for automatic doors and industrial doors i Motion sensor for people and objects.

  Remote Controller:
  Is a component of an electronic device to operate the device with radio frequency from a long distance (25 mt up to 100 mt).
• Manual Operation:
  In Emergency situations or when power is off doors can be operated manually a few ways. A hand crank that attaches to the output shaft of the motor is available for manual operation. (Standard)Connecting the door to a power generator would eliminate the problem in case of a power failure. (Optional)
• Control Board:
  Control board is designed according to CE 94/9/ EC and NEMA ICS 2 Standard to operate 3 phase motor with rotate switch. It is suitable ZONE II atex area relative standard is III 2 G Ex d IIB Gb ant II 2 D Ex t_b IIIC T 100^oC IP 67 Emergency button Circuit Breakers Warning light Buzzer(Optional), Plug in technology served with universal spare parts.Optionally: Frequency converters control board with touch less button-Mono phase operators control board is available.
