Crane Hangar Door

Overview

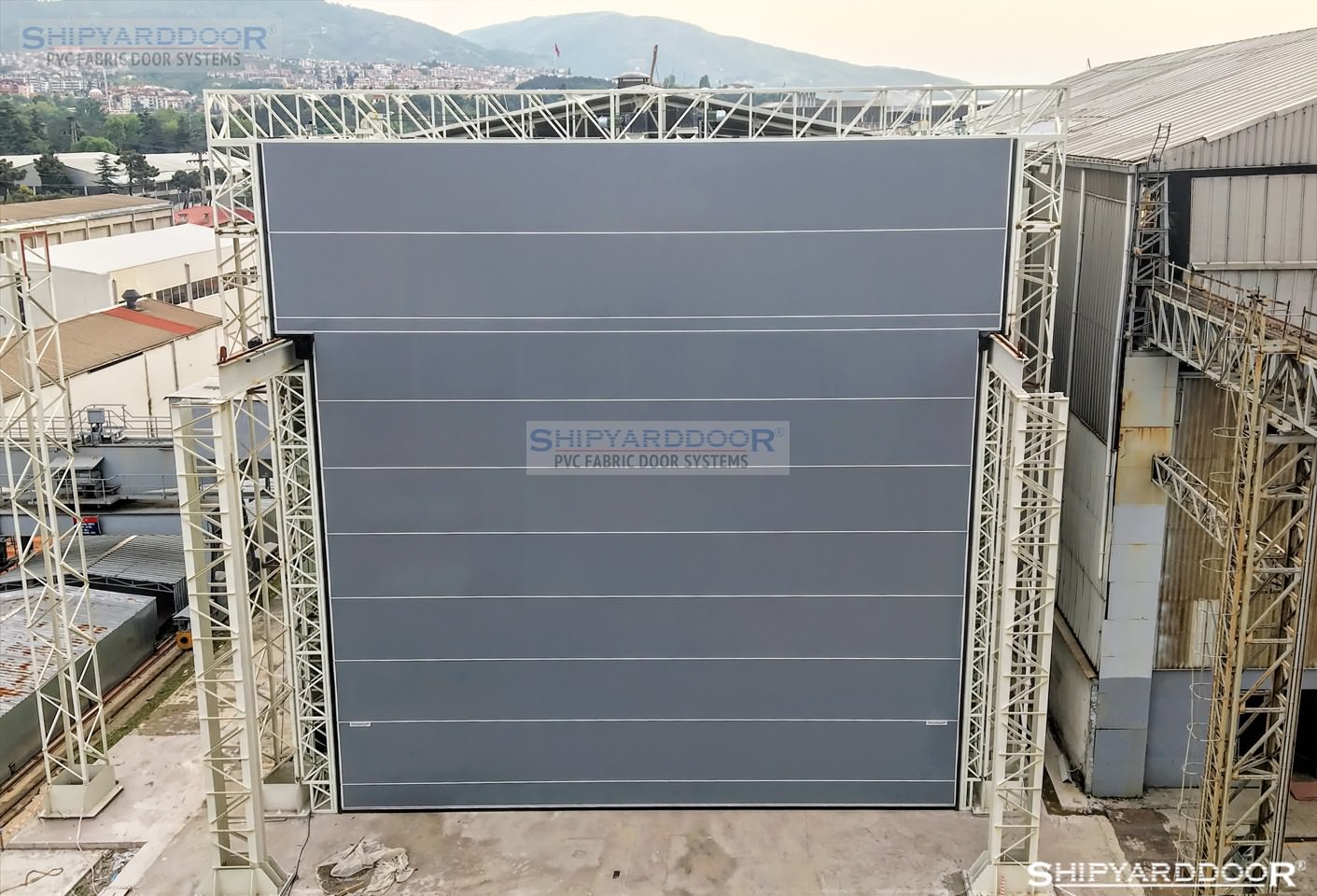

The Shipyarddoor® Crane Hangar Door is a T-shaped, flexible door system designed for buildings with overhead cranes. It offers unlimited width and height, providing high insulation around crane paths—where standard doors fail.

Engineered for durability, flexibility, and thermal performance, it’s ideal for shipyards, mining, waste management, steel plants, and heavy industry. A fully customized solution for efficient crane access with superior insulation.

Key Points:

  • 24/7 Operations:
    Built for continuous heavy-duty use, with high-resistance fabric and durable gearbox systems enabling reliable 24/7 operation.
  • Superior Sealing:
    Exclusive side sealing pockets and heavy-duty PVC fabric ensure superior insulation, even in high winds. Custom cover gaps between crane rails and door provide added weather protection and quiet operation.
  • Low Maintenance:
    All components are carefully selected to eliminate the need for routine maintenance. No springs, ball bearings, or high-wear parts.
  • Maximum Dimensions:
    No height or width limits—up to 40m x 40m in a single section. T-shape configurations fully cover crane paths.

Fill out the form to receive a call

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Comprised of:

  • Main Structure:
    Twin-layer fabric folds in opposite directions, mounted to horizontal aluminum or steel beams. Minimum door thickness: 600 mm. Intermediate beams retract via motor and include polyamide tires for smooth wind-resistant operation. Clear openings remain fully unobstructed when retracted.

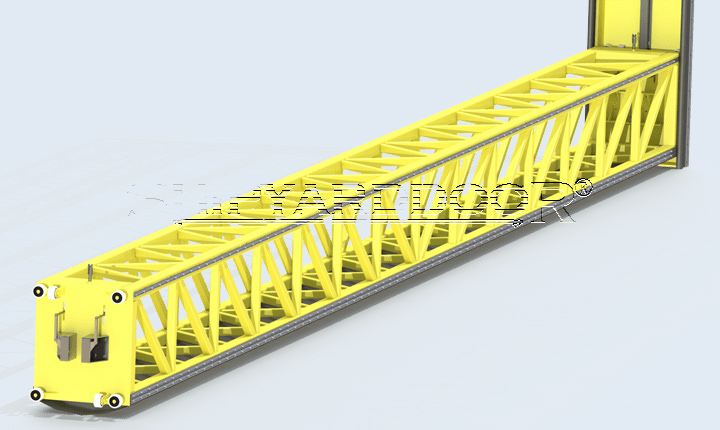

  • Bottom Beams:
    Engineered to support intermediate beam weight and resist wind loads. Ensures complete bottom sealing during door closure.
  • Side Guides:
    Made of structural steel with aluminum rails bolted to the frame. Designed for strong weather-sealing and easy replacement. All guide rails include steel supports, unlike many competitors.
  • Cable System:
    Operated with up to two steel cables per door, routed inside side guides. Kink-free installation and large-diameter sheaves minimize wear. Sheaves are placed for easy technician access.
  • Fabric:
    VALMEX POLYMAR® Fire-ResistWeight: 900–1500 g/m² | Thickness: 2 mmUV-Resistant | Tensile: 4300/4000 N (DIN 53354)Tear: 500/500 N (DIN 53363)Optional Arctic, Sound-Insulated, and Secure variants available.
  • Fire Resistance:
    Complies with DIN 4102-B1. Flame-retardant and self-extinguishing once the ignition source is removed.
  • Insulation:
    U-value: <0.9 W/m²·KSound attenuation: 12 dB(A)Insulated fabric available on request.
  • Wind Resistance:
    Operational resistance: 140 km/hClosed resistance: 180 km/hCustom builds available up to 230 km/h (hurricane standard, EN 12424 Class 4–5)
  • Structural Loading:
    Engineered to handle wind pressure, suction, dead loads, and seismic forces per site-specific requirements.
  • Drive System & Limit Switching:
    Twin motors ensure balanced lifting—each motor operates independently if one fails. Redundant limit switches control upper/lower travel and include slack rope detection for added safety.
  • Speed:
    Standard speed: 20 cm/sOptional upgrade: up to 40 cm/s
  • Safety:
    Complies with CE Directives: 89/106/EC, 99/93/EStandards: EN 13241-1:2003+A1:2011, EN 12978:2008Standard features: load arrestors, wind locks, thermic resistance, buzzer, and warning light.Optional: bottom safety edge, pneumatic edge system.
  • Load Arrestors & Wind Locks:
    Patented load arrestors prevent falling in case of strap failure. Wind locks secure the door against lift during storms. Slack cable sensors cut power to prevent unsafe conditions.
  • Operation & Controls:
    Operated via “Open,” “Close,” and “Stop” buttons. Integrated audio/visual warnings activate before and during movement. Fully guided within weather-sealed vertical rails.
  • Manual Operation:
    Hand crank available for small doors. Generator backup recommended for large doors in case of power failure
